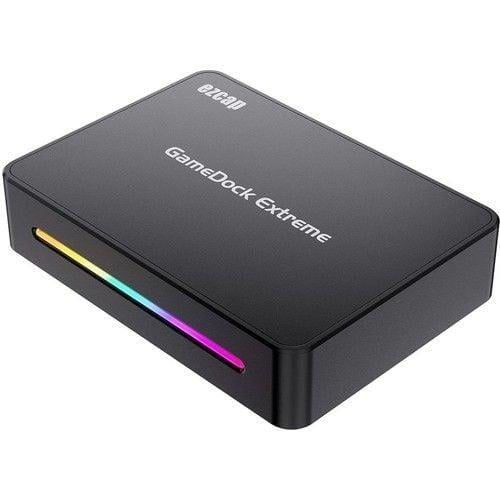

Sonuç olarak, EZCAP 360 GameDock Extreme, video oyunlarını kaydetmek ve paylaşmak isteyenler için ideal bir çözüm sunar. Yüksek çözünürlükte kayıt yapabilme özelliği, kullanım kolaylığı ve bağlantı seçenekleriyle oyun deneyiminizi bir adım ileriye taşıyabilirsiniz.
Features
- 4Kp60, 1080p240 and 1440p120 HDMI input and pass-through.
- 4Kp60, 1080p240, and 1440p144 recording.
- Supports HDR and VRR input and pass-through.
- Supports LPCM 5.1 7.1 channel audio input and pass-through.
- RGB real color video format up to 1080p60.
- Latency less than 50ms.
- UVC, plug and play.
- Supports most of third party video capture softwares.
- USB 3.2 Gen1 Type-C super fast speed.
- Supports mixer and microphone input to mix audio.
Specifications
- Interface: USB 3.2 (Gen 1) Type-C
- Video Input / Output (Pass-Through): HDMI® 2.0 enabled
- Audio Input: HDMI® 2.0 - LPCM 5.1/7.1 channel audio, 3.5mm Line In (TRS 3-pole), 3.5mm headset microphone input (CTIA 4-pole)
- Audio Output (Pass-Through): HDMI® 2.0, 3.5mm headset earphone output (CTIA 4-pole)
- Max. HDR Pass-Through Resolution: 2160p60 HDR, 1440p120, 1080p240
- Max. VRR Pass-Through Resolution: 3840 x 2160 - VRR(48 - 60 Hz), 1920 x 1080 - VRR(48 - 120 Hz). (Note: YCbCr 420 VRR is not supported. Such as XBOX X1, please tick Allow YCC 4:2:2 setting to allow VRR. )
- Max Record Resolution:
3840 x 2160 - 60fps/MJPG, 30fps/NV12/I420.
2560 x 1440 - 144fps/MJPG, 60fps/NV12/I420, 50fps/YUY2.
2560 x 1080 - 60fps/NV12/I420/YUY2/MJPG.
1920 x 1080 - 240pfs/MJPG, 120fps/NV12/I420, 60fps/YUY2/RGB24.
1280 x 720 - 60fps/NV12/I420/YUY2/RGB24/MJPG.
- LED status indicator: RED-power on, BLUE-HDMI input, Color slow flashing-device running. (Different version: WHITE flashing - power on, BLUE - HDMI input, Color slow flashing - device running)
- Package Contents: ezcap360 GameDock Extreme x1, USB-C to C/A cable x1, Manual x1.
- Dimensions (W x D x H): 128 x 92 x 28 mm
Operating System
Windows 10 x64 / 11 x64，USB 3.2 (Gen 1) Port x1
Desktop: Intel Core i5-6XXX or above, NVIDIA GeForce GTX 1060 or above.
Laptop: Intel Core i7-7700HQ or above, NVIDIA GeForce GTX1050 Ti or above.
8 GB RAM recommended.
macOS 11 / 12, USB 3.2 (Gen 1) Port x1
Apple M1 or Intel i7 quad-core or above, Radeon Pro 555 with 2 GB of VRAM, 16 GB of 2400 MHz DDR4 memory.
